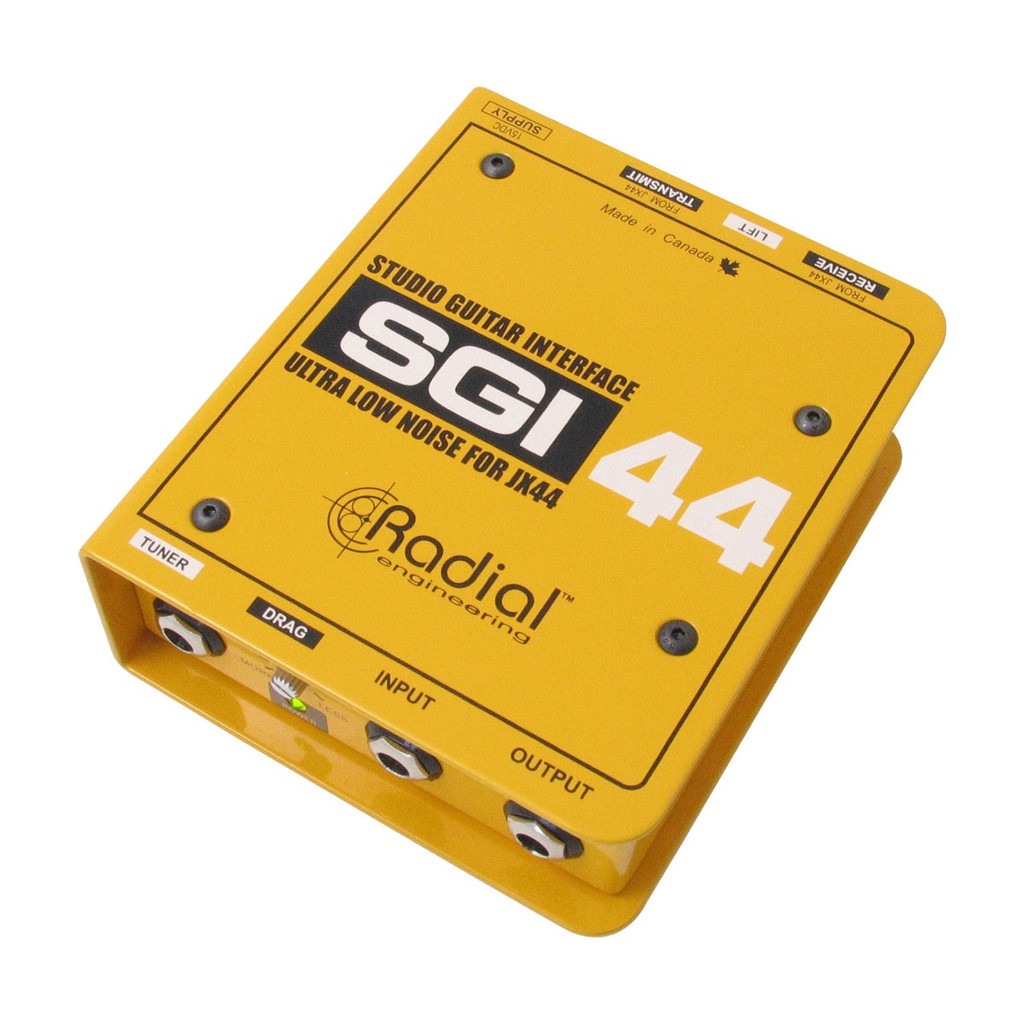

Radial SGI Studio Guitar Interface with Class A Active Circuitry, Drag Control Pickup Load Correction and Heavy-duty Construction

The Radial SGI Studio Guitar Interface System allows amazingly long cable runs for guitars (328') over a standard balanced XLR microphone cable. Using ruggedly constructed transmitter and receiver modules loaded with high-quality Class A active circuits.

The SGI interface system lets you play on the largest stages or record from the studio control room. Drag control load correction and isolation transformers ensure great sound at long distances, without hum or buzz. If your studio or stage setup requires long cable runs, you need the easy-to-use, road-ready SGI system.

The SGI sends guitar signals across long distances without signal loss or noise, while retaining the original tone of the instrument. In the studio, it allows the guitarist to sit in the control room and connect to a distant guitar amp.

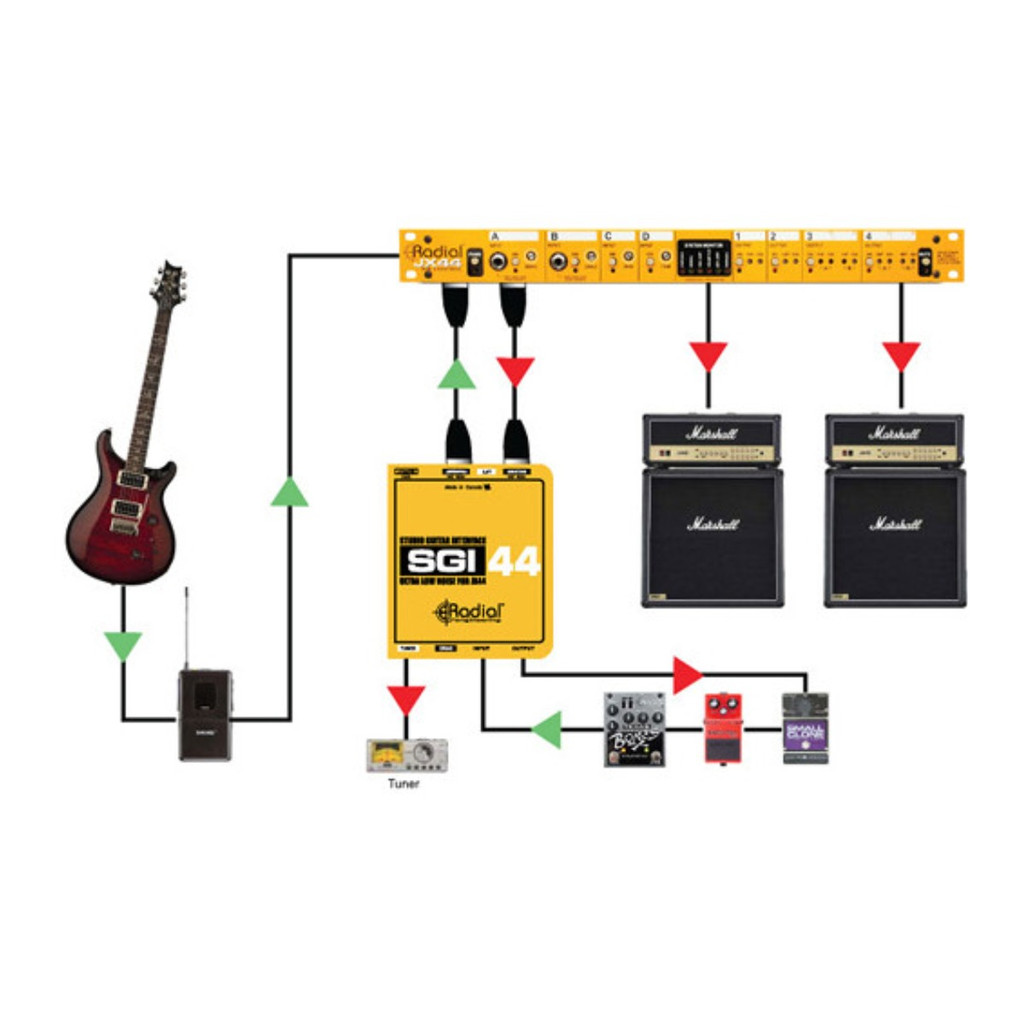

On stage, the SGI can be used to play the guitar amp using off-stage isolation cabinets or it can be used to manage guitar signals to and from wireless systems, pedalboards and amplifiers. The SGI consists of two boxes: the SGI-TX transmitter and the SGI-RX receiver.

The connection between the TX and RX is made using a standard balanced XLR microphone cable. To use, you simply plug your guitar into the SGI-TX input and connect your amp from the SGI-RX output and you are set to go. The SGI does all of the balancing, buffering and impedance matching for you

Features

• Drive a guitar signal 300 feet without loss

• 100% discreet Class A electronics

• Drag Control pickup load correction

• Transformer isolated to eliminate noise

• Routes using standard balanced XLR cable

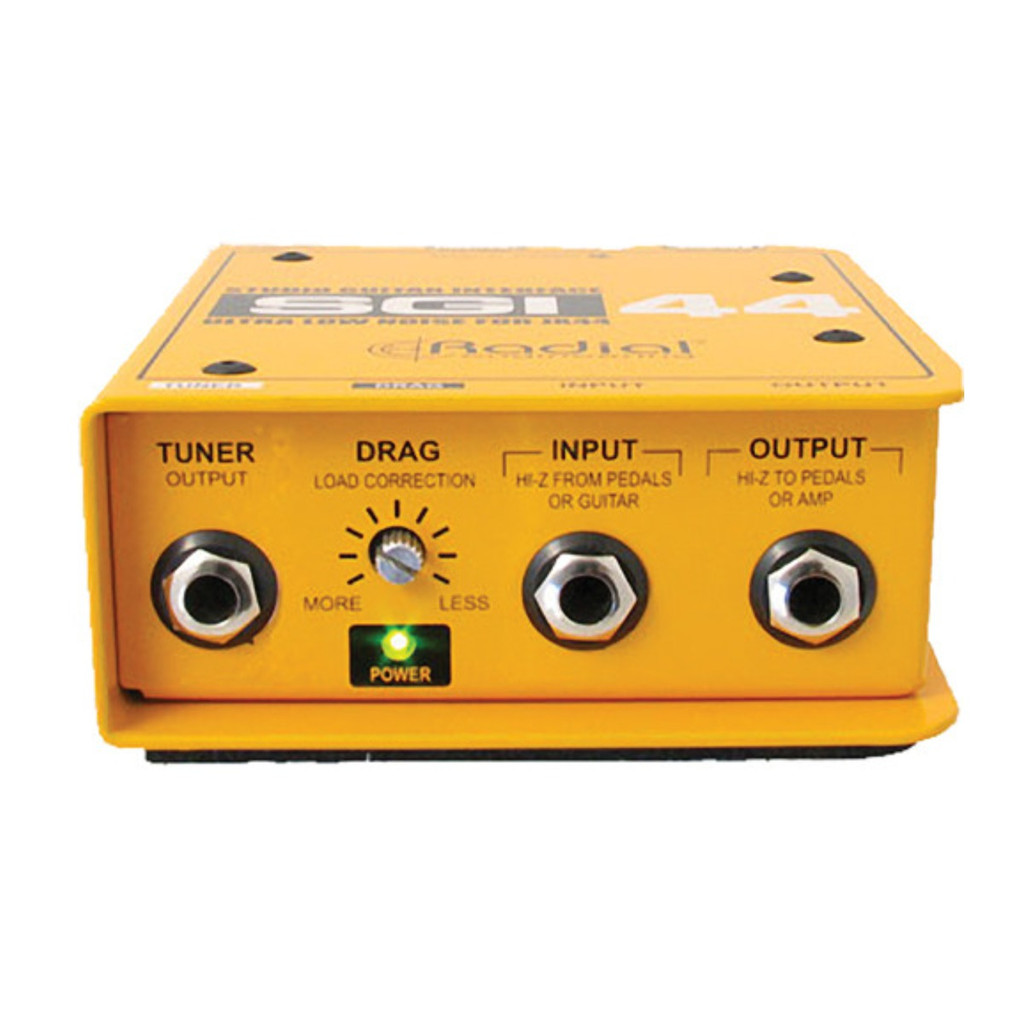

• SGI-TX hi-Z input: 1/4" jack (buffered) with Drag control load correction circuit

• SGI-TX output: Balanced XLR-M output


Specifications

• Type: Studio Guitar Interface

• Power Supply: 15V DC (adapter included)

• Construction: 14-gauge steel with baked enamel finish

• Input: 1/4" TS instrument input
• Output: XLR balanced output
• Drag Control: Adjustable knob
• Ground Lift: Switch to eliminate hum and buzz
• Input: XLR balanced input

• Output: 1/4" TS unbalanced output

• Ground Lift: Switch to eliminate hum and buzz
